## Parameters in resistance welding

The principle of resistance welding is the Joule heating law where the heat Q is generated depending on three basic factors as expressed in the following formula:

### Q = I²Rt

where I is the current passing through the metal combination, R is the resistance of the base metals and the contact interfaces, and t is the duration/time of the current flow.

The principle seems simple. However, when it runs in an actual welding process, there are numerous parameters, some researchers had identified more than 100, to influence the results of a resistance welding. In order to have a systematic understanding of the resistance welding technology, we have carried out a lot of experimental tests and summarized the most influential parameters into the following eight types:

1) Welding current
The welding current is the most important parameter in resistance welding which determines the heat generation by a power of square as shown in the formula. The size of the weld nugget increases rapidly with increasing welding current, but too high current will result in expulsions and electrode deteriorations. The figure below shows the typical types of the welding current applied in resistance welding including the single phase alternating current (AC) that is still the most used in production, the three phase direct current (DC), the condensator discharge (CD), and the newly developed middle frequency inverter DC. Usually the root mean square (RMS) values of the welding current are used in the machine parameter settings and the process controls. It is often the tedious job of the welding engineers to find the optimized welding current and time for each individual welding application.

2) Welding time
The heat generation is directly proportional to the welding time. Due to the heat transfer from the weld zone to the base metals and to the electrodes, as well as the heat loss from the free surfaces to the surroundings, a minimum welding current as well as a minimum welding time will be needed to make a weld. If the welding current is too low, simply increasing the welding time alone will not produce a weld. When the welding current is high enough, the size of the weld nugget increases with increasing welding time until it reaches a size similar to the electrode tip contact area. If the welding time is prolonged, expulsion will occur or in the worst cases the electrode may stick to the workpiece.

3) Welding force
The welding force influences the resistance welding process by its effect on the contact resistance at the interfaces and on the contact area due to deformation of materials. The workpieces must be compressed with a certain force at the weld zone to enable the passage of the current. If the welding force is too low, expulsion may occur immediately after starting the welding current due to fact that the contact resistance is too high, resulting in rapid heat generation. If the welding force is high, the contact area will be large resulting in low current density and low contact resistance that will reduce heat generation and the size of weld nugget. In projection welding, the welding force causes the collapse of the projection in the workpiece, which changes the contact area and thereby the contact resistance and the current density. It further influences the heat development and the welding results.

4) Contact resistance
The contact resistance at the weld interface is the most influential parameter related to materials. It however has highly dynamic interaction with the process parameters. The figure below shows the measured contact resistance of mild steel at different temperatures and different pressures. It is noticed that the contact resistance generally decreases with increasing temperature but has a local ridge around 300°C, and it decreases almost proportionally with increasing pressure. All metals have rough surfaces in micro scale. When the welding force increases, the contact pressure increases thereby the real contact area at the interface increases due to deformation of the rough surface asperities. Therefore the contact resistance at the interface decreases which reduces the heat generation and the size of weld nugget. On the metal surfaces, there are also oxides, water vapour, oil, dirt and other contaminants. When the temperature increases, some of the surface contaminants (mainly water and oil based ones) will be burned off in the first couple of cycles, and the metals will also be softened at high temperatures. Thus the contact resistance generally decreases with increasing temperature. Even though the contact resistance has most significant influence only in the first couple of cycles, it has a decisive influence on the heat distribution due to the initial heat generation and distribution.

5) Materials properties
Nearly all material properties change with temperature which add to the dynamics of the resistance welding process. The resistivity of material influences the heat generation. The thermal conductivity and the heat capacity influence the heat transfer. In metals such as silver and copper with low resistivity and high thermal conductivity, little heat is generated even with high welding current and also quickly transferred away. They are rather difficult to weld with resistance welding. On the other hand, they can be good materials for electrodes. When dissimilar metals are welded, more heat will be generated in the metal with higher resistivity. This should be considered when designing the weld parts in projection welding and selecting the forms of the electrodes in spot welding. Hardness of material also influences the contact resistance. Harder metals (with higher yield stress) will result in higher contact resistance at the same welding force due to the rough surface asperities being more difficult to deform, resulting in a smaller real contact area. Electrode materials have also been used to influence the heat balance in resistance welding, especially for joining light and non-ferrous metals.

6) Surface coatings
Most surface coatings are applied for protection of corrosion or as a substrate for further surface treatment. These surface coatings often complicate the welding process. Special process parameter adjustments have to be made according to individual types of the surface coatings. Some surface coatings are introduced for facilitating the welding of difficult material combinations. These surface coatings are strategically selected to bring the heat balance to the weld interface. Most of the surface coatings will be squeezed out during welding, some will remain at the weld interface as a braze metal.

7) Geometry and dimensions
The geometry and dimensions of the electrodes and workpieces are very important, since they influence the current density distribution and thus the results of resistance welding. The geometry of electrodes in spot welding controls the current density and the resulting size of the weld nugget. Different thicknesses of metal sheets need different welding currents and other process parameter settings. The design of the local projection geometry of the workpieces is critical in projection welding, which should be considered together with the material properties especially when joining dissimilar metals. In principle, the embossment or projection should be placed on the material with the lower resistivity in order to get a better heat balance at the weld interface.

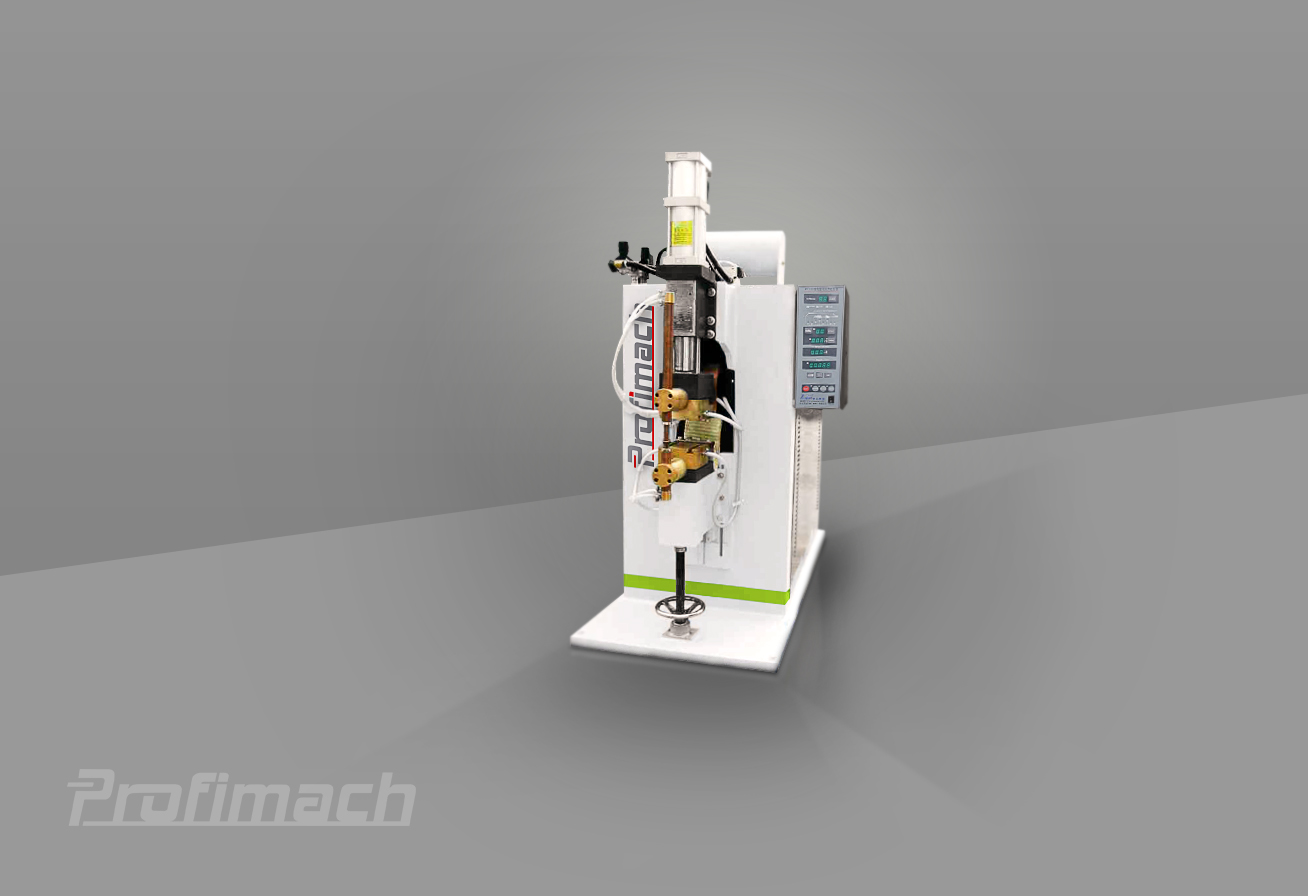

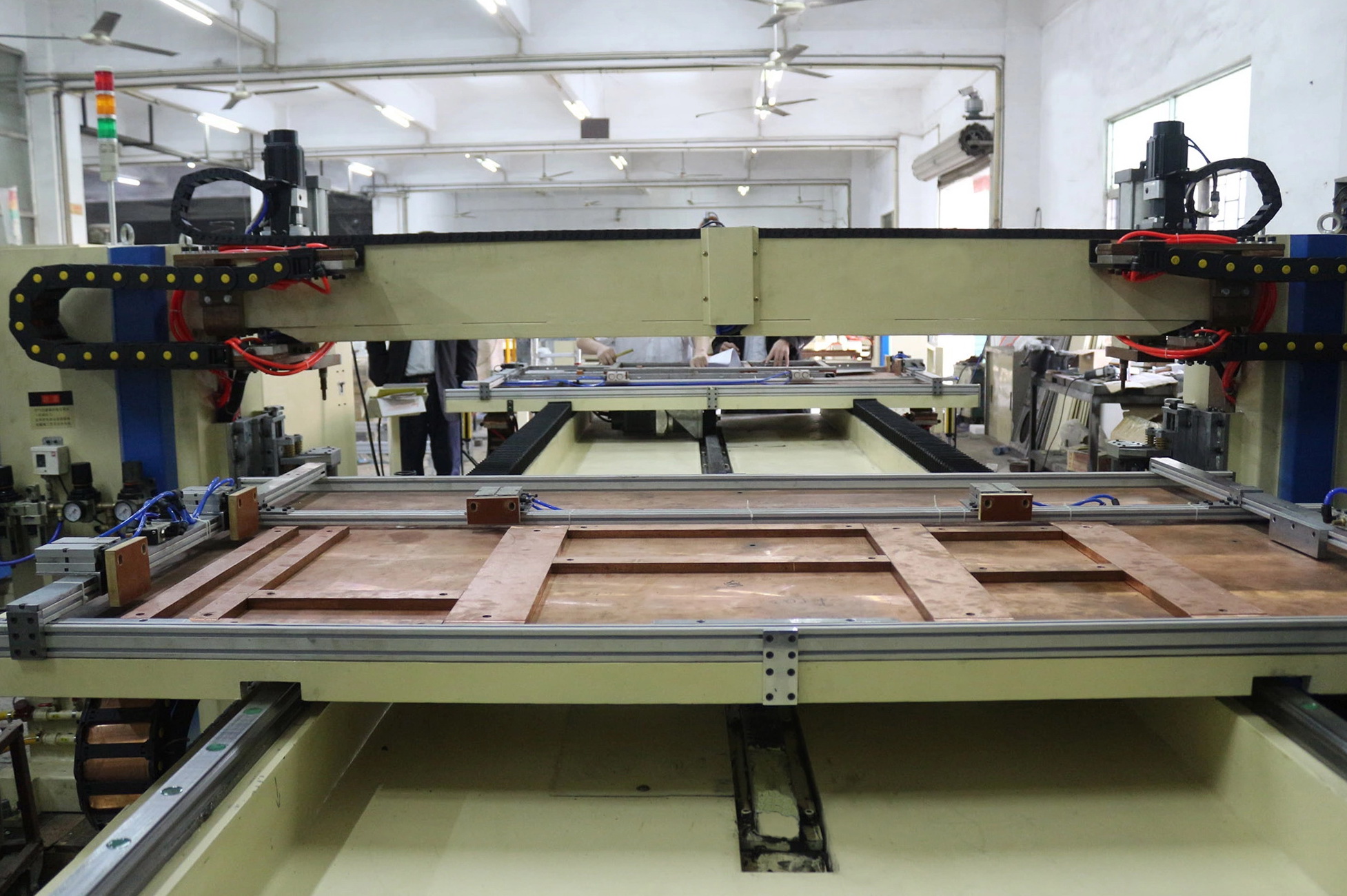

8) Welding machine characteristics
The electrical and mechanical characteristics of the welding machine have a significant influence on resistance welding processes. The electrical characteristics include the dynamic reaction time of welding current and the magnetic / inductive losses due to the size of the welding window and the amount of magnetic materials in the throat. The up-slope time of a welding machine can be very critical in micro resistance welding as the total welding time is often extremely short. The magnetic loss in spot welding is one of the important factors to consider in process controls. The mechanical characteristics include the speed and acceleration of the electrode follow-up as well as the stiffness of the loading frame/arms. If the follow-up of the electrode is too slow, expulsion may easily occur in projection welding. The figure below shows measured process parameters in a projection welding process, which include the dynamic curves of the welding current, the welding force and the displacement of the electrode, where the sharp movement corresponds to the collapse of the projection in the workpiece.
